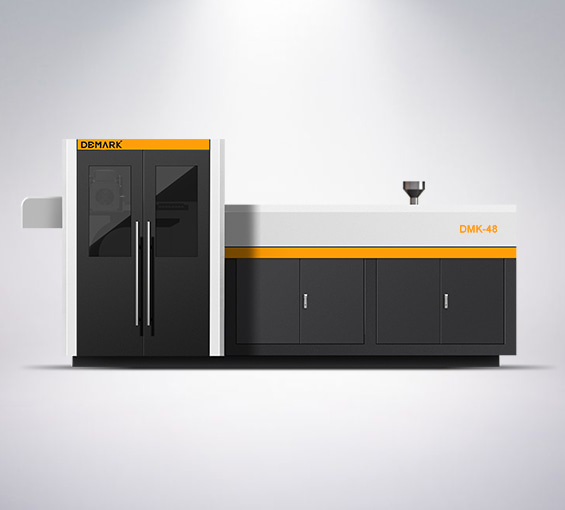

Continuous/Closure Compression Molding Machine

● 36, 48 Cavities Rotary Closure Compression Machine
● Output: 1200 pcs/cavity/hr (Closure Produce line)
● More than 45% of plastic(HDPE) beverage Closures are produced through compression. Closure production line.
● It’s easy to start the machine with one button

● The DMK-CM36,DMK-CM48 plastic bottle closure compression molding machine(continuous compression molding machine),as the innovation of the second generation of plastic closure molding processing, produces all sizes of both CSD and water closure with high efficiency and quality from PP & PE resin. This fully automatic closure compression molding machine is warmly welcome by customers with the advantages of high output, low consumption and labour saving

● The DMK-CM HDPE bottle closure compression molding machine, completely controlled by computer, has excellent stability and durability. Closures made by this machine have smooth & nice appearance, no injection point and size conformity, comparing with similar traditional injection machine, the output is increased by 3 times, and the usage of raw materials increased up to 98% with environmental production and no hot runner waste. Meantime, this machine saves human labour a lot, decreaseuse of the floor area and finally save energy. Specialrequests from customers like printing marks and logo can also be realized accordingly with low cost and high efficiency

● DMK-CM hydraulic rotary presses are specially designed to produce thermoplastic products by means of compression. A continuous work cycle is carried out, during which the plastic material is fed by a plasticization unit, cut into suitably sized pellets and then inserted inside the cavities. More than 45% of plastic beverage closures are produced through compression.
ITEMS UNIT DMK-CM16 DMK-CM24 DMK-CM28 DMK-CM36 DMK-CM48
Raw material   PP/HDPE/LDPE/PTE PP/HDPE/LDPE/PTE PP/HDPE/LDPE/PTE PP/HDPE/LDPE/PTE PP/HDPE/LDPE/PTE
Max capacity pcs/hr 9000-16000 17000-25000 19000-28000 22000-36000 33000-52000
3025 capacity pcs/hr 16000 25000 28000 36000 52000
38mm capacity pcs/hr 9000 17000 19000 22000 33000
Diameter of cap mm 22-42 22-42 22-42 22-42 22-42
Height of cap mm 10-25 10-25 10-25 10-25 10-25
Number of cavity PCS 16 24 28 36 48
Actual power consumption KW 16-20 28-33 32-35 32-42 50-60
Operating pressure Mpa 0.8 0.8 0.8 0.8 0.8
Pressure consuming M3/hr 2 2 2 2 2
Power supply V/HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ 380V/50HZ
Machine weight TON 4.5 6.3 6.5 8 11.5
Dimension mm 4300*1750*2600 4800*2180*2600 4800*2180*2600 5300*2180*2600 6100*2180*2600
Installation power KW 40 55 55 95 75

* Demark reserves the right to make changes to the products and specifications are subject to change without notice.
