    • DMK-R Series Rotary Blow Molding Machine

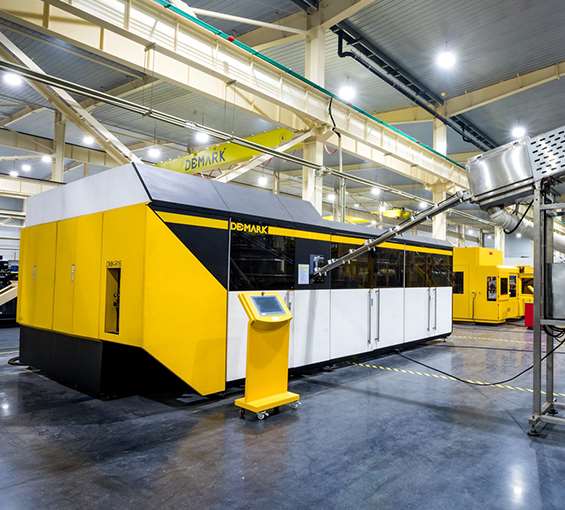

    DMK-R Rotary Blow Molding Machine

    • ● 6-22 cavities, 12000-48000bph,max. 2.5L,
    • ● 2,200 bottles/cavity/hour
    • ● Provide unique design for instant mould conversion
    • ● The new mould base concept reduces format changeover times.
    • ● Cut 30% blowing costs, reduce 46% power consumption.
    Send inquiry
    Click to download PDF
    Description Technical parameters Video
    • 1.Output: 10,000 to 48,000 bottles/h
    • 2.Bottle size: 0.25L to 2.5L
    • 3.Suitable for: non-carbonated and carbonated water, soft drinks, juice, tea, isotonicBeverages, milk and dairy prouducts, beer, oil and sauces and HPC prouducts
    • 4.The new oven, with 43.8mm PITCH, improves speed to 2,200 bottles/cavity/hour
    • 5.Provide unique design for instant mould conversion
    • 6.The new mold base concept reduces format changeover times

    DMK-R Series Unit DMK-R6 DMK-R10 DMK-R12 DMK-R14 DMK-R16
    For cold/hot filling For cold/hot filling For cold/hot filling For cold/hot filling For cold/hot filling
    Productivity Bph 11400/7800 19000/13000 22800/15600 26600/18200 30400/20800
    Number of cavity PCS 6 10 12 14 16
    Volume of continer L 0.2-2.5 0.2-2.5 0.2-2.5 0.2-2.5 0.2-2.5
    Max continer diameter MM 116 116 116 116 65
    Max continer height MM 320 320 320 320 250
    Max height of bottle preform MM 145 145 145 145 145
    Installation power KW 3 5.5 5.5 5.5 5.5
    OVEN Installation power KW 108 216 216 216 250
    Elevator power KW 1.5 1.5 1.5 1.5 1.5
    Actual total power KW 37-53 70-103 70-103 82-120 120
    Voltage/frequency(50hz) V 380（50Hz） 380（50Hz） 380（50Hz） 380（50Hz） 380（50Hz）
    Working air pressure Kg/cm3 7～10 7～10 7～10 7～10 7～10
    Working air flux M3/min 6 7 7 7 8
    Blowing air pressure Kg/cm3 30～40 30～40 30～40 30～40 30～40
    Blowing air flux M3/min 6/16 10/24 12/30 14/35 16/38
    Dimension of main machine M 2.2*1.8*2.9 4.02*3.0*3.42 4.02*3.0*3.42 4.02*3.0*3.42 2.78*4.4*2.91
    Dimension of oven M 2.7*1.0*1.9 4.4*1.82*2.4 4.4*1.82*2.4 4.4*1.82*2.4 4.4*2.39*2.57
    Machine weight Ton 7.5 15/16 16/17 18/19 18.5/19.5
    DMK-R Series Unit DMK-R6 DMK-R10 DMK-R12 DMK-R14 DMK-R16
    For cold/hot filling For cold/hot filling For cold/hot filling For cold/hot filling For cold/hot filling
    Productivity Bph 11400/7800 19000/13000 22800/15600 26600/18200 30400/20800
    Number of cavity PCS 6 10 12 14 16
    Volume of continer L 0.2-2.5 0.2-2.5 0.2-2.5 0.2-2.5 0.2-2.5
    Max continer diameter MM 116 116 116 116 65
    Max continer height MM 320 320 320 320 250
    Max height of bottle preform MM 145 145 145 145 145
    Installation power KW 3 5.5 5.5 5.5 5.5
    OVEN Installation power KW 108 216 216 216 250
    Elevator power KW 1.5 1.5 1.5 1.5 1.5
    Actual total power KW 37-53 70-103 70-103 82-120 120
    Voltage/frequency(50hz) V 380（50Hz） 380（50Hz） 380（50Hz） 380（50Hz） 380（50Hz）
    Working air pressure Kg/cm3 7～10 7～10 7～10 7～10 7～10
    Working air flux M3/min 6 7 7 7 8
    Blowing air pressure Kg/cm3 30～40 30～40 30～40 30～40 30～40
    Blowing air flux M3/min 6/16 10/24 12/30 14/35 16/38
    Dimension of main machine M 2.2*1.8*2.9 4.02*3.0*3.42 4.02*3.0*3.42 4.02*3.0*3.42 2.78*4.4*2.91
    Dimension of oven M 2.7*1.0*1.9 4.4*1.82*2.4 4.4*1.82*2.4 4.4*1.82*2.4 4.4*2.39*2.57
    Machine weight Ton 7.5 15/16 16/17 18/19 18.5/19.5

    * Demark reserves the right to make changes to the products and specifications are subject to change without notice.
